Toptaper Next
Normal/Gold/Blue

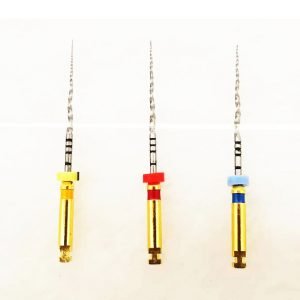

Normal
SilverNon-heat reated rotary file compatible to the ProTAPER next.

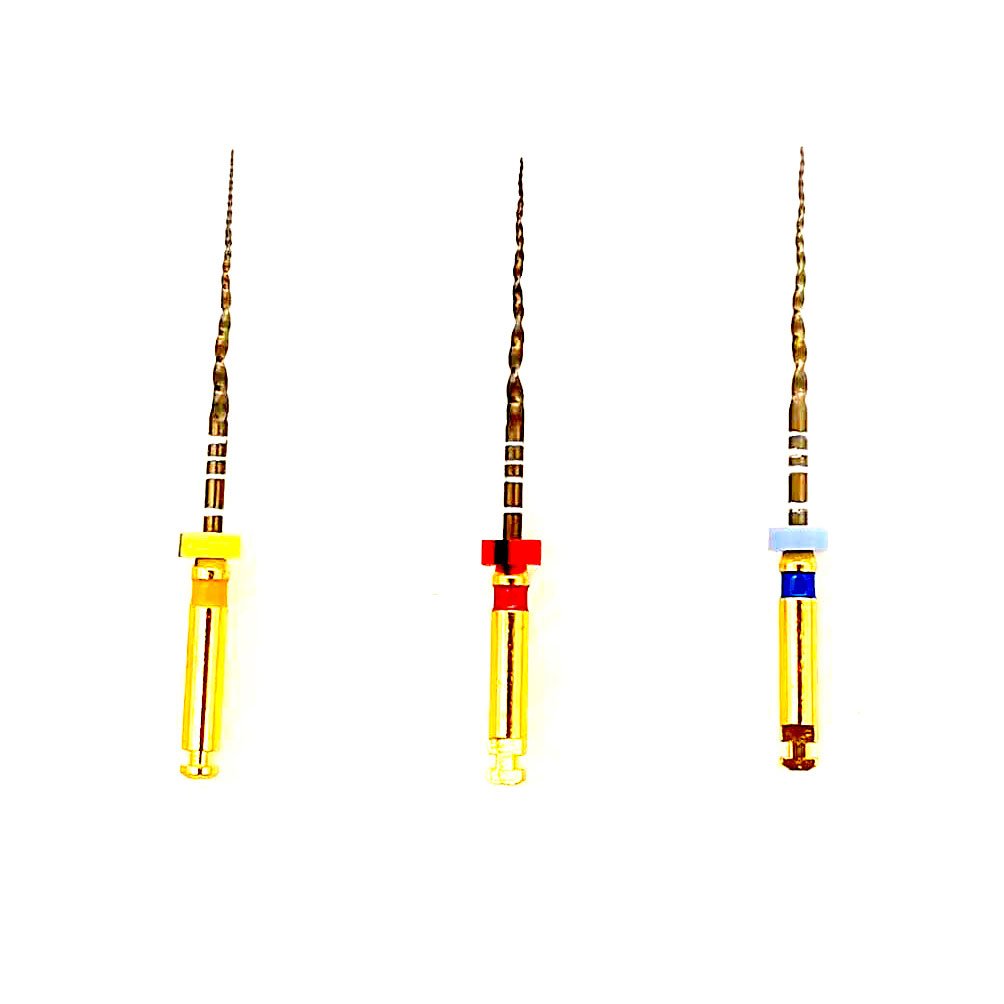

Gold
Heat treatedHeat treated rotary file system with gold standard, increase twice resistance of cyclic fatigue compared to NORMAL.

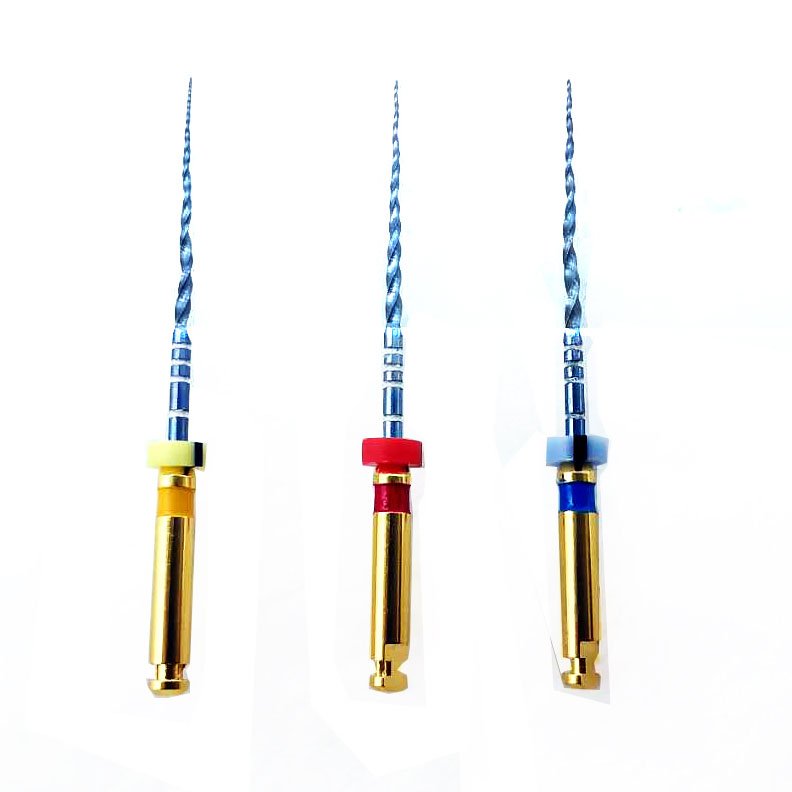

Blue
Heat treatedHeat treated rotary file system with blue standard, increased resistance to cyclic fatigue and additional flexibility, in addition, it has the option of precurving the instrument, to obtain an easier access to the canals, when needed.
Specification:
SIZE: N1,N2,N3
LENGTH: 21mm, 25mm, 31mm.
PACKAGE: 6pcs/box.
Instruction:
NORMAL: Non-heat reated rotary file compatible to the ProTAPER next;
GOLD: Heat treated rotary file system with gold standard, increase twice resistance of cyclic fatigue compared to NORMAL.
BLUE: Heat treated rotary file system with blue standard, increased resistance to cyclic fatigue and additional flexibility, in addition, it has the option of precurving the instrument, to obtain an easier access to the canals, when needed.
- Follow polycrystal NiTi alloy material CNC program;
- Classic Silver, Gold and Blue activation;
- Special snakelike motion;
- Use to shape more severely curved norrow canals, the high cutting efficiency save shaping time.
- Torque: 2.5 N/cm
- Rotary speed: 150~350r/min
- Sterilization: 121ºC / 15-30mins or 134ºC / 10mins

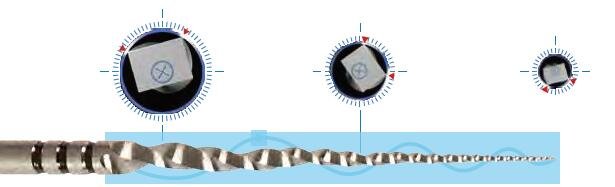

- Cross section：
Performance:
Incomparable heat treatment
Flexibility
Pre-bendability
Cyclic fatigue resistance & Torque strength N/cm
Opeation:
- Explore the canal using small sized hand files;
- In the presence of NaOCI, along the glide path, with the Toptaper Next N1, in one or more passes, until working length is reached;
- Use Toptaper Next N2, exactly as described for N1 file, until working length is reached;
- Gauge the foramen with a size 025 hand file, if this file is snug at length, the canal is shaped and ready for disinfection;
- If the size 25 hand files is loose at length, the continue shaping with the N3.
